Smart Air Safe

home icon Business Fields Smart Air Safe
retrofit

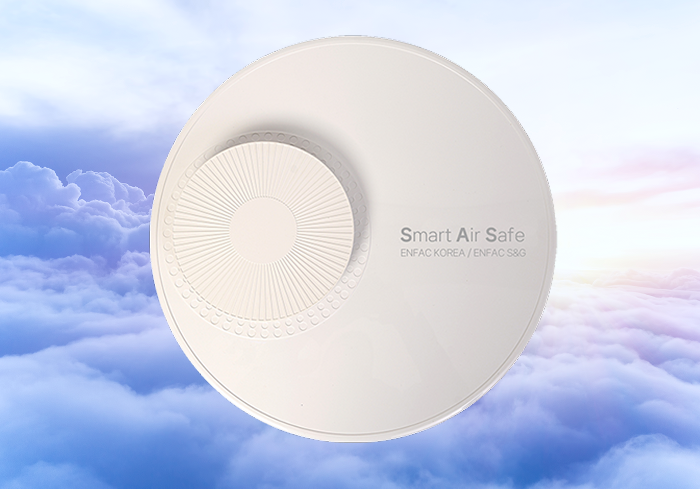

Smart Air Safe

SmartAir Safe(S.A.S), the first air sterilization and filtration for ships provides clean and safe air to protect users from the risk of viral infection that may spread asair is circulated through the air conditioning system.

Smart Monitoring System

  • Low power

    Less than 50W power consumption,
    the amount for about 2 bulbs used

  • Low noise

    Noise level in quiet library
    below 40dB

  • Convenience

    Easy installation and
    low maintenance

Background of Product Development

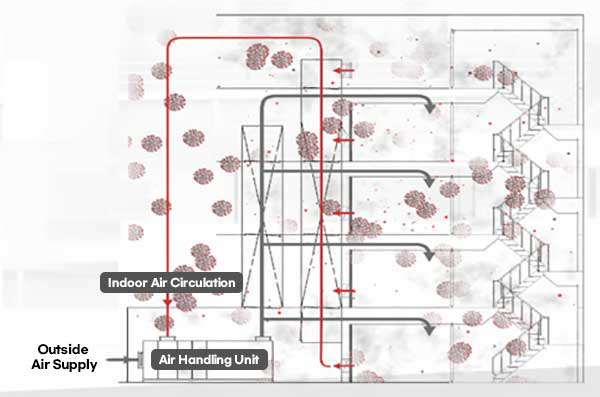

  • Structural characteristics of ships that make natural ventilation difficult

    "The central air conditioning system on ships operates using an internal circulation method, where the ventilation ducts in all cabins are connected to the supply ducts. If a respiratory virus, such as COVID-19, breaks out in one cabin, contaminated air can easily spread to other cabins through the air conditioning system, potentially leading to mass infections."

  • Condition of contamination in the air circulation duct diffuser

    Upon checking the air circulation duct diffusers on actual ships, it was found that most vessels are severely contaminated, and it is common to see crew members temporarily blocking them with materials such as non-woven fabric, boxes, and tape.

Smart Air Safe Key Features

Features 01

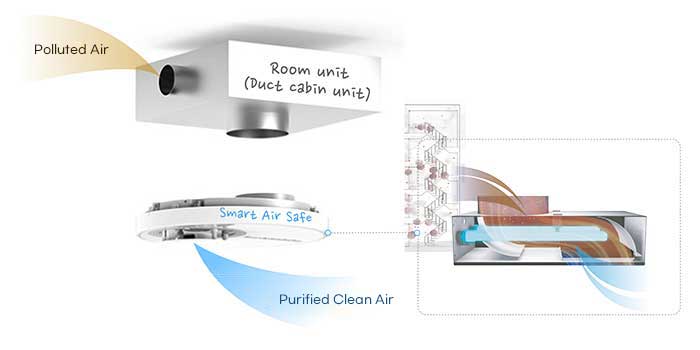

Sterilization Method of Smart Air Safe
  • Incoming air is purified through direct contact sterilization

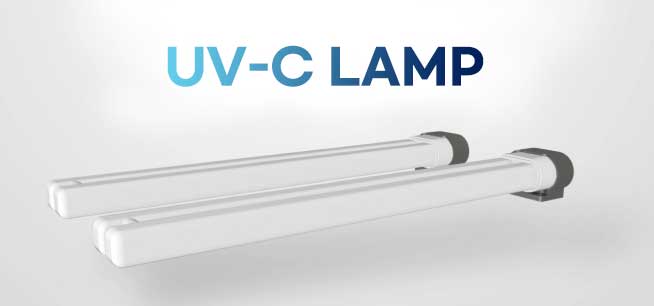

  • UV-C lamp and double filter (Carbon filter + HEPA filter) purify viruses, bacteria, volatile organic compounds (VOCs), fine dust, etc. through three-step sterilization method.
  • Can be directly installed in existing duct cabin units(room units)
Features 02
Reduction rate of airborne viruses and bacteria up to 99.8%
  • High sterilization power for low energy
  • As it destroys the DNA of the microorganism itself, resistance does not occur, so it is effective for sterilization
  • 100-280 nm wavelength suitable for destroying bacterial DNA and RNA
  • Certified by Korea Testing Laboratory (KTL) for removing 99.8% of airborne viruses and airborne bacteria reduction rate of up to 99.8%
Features 03

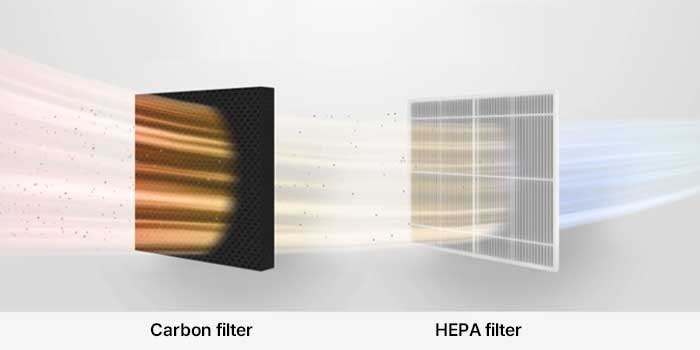

Double filter (Carbon filter, HEPA filter)
  • Remove harmful gases such as volatile organic compounds (VOCs) and fine dust
  • Judged suitable for deodorization of the five harmful substances (ammonia, toluene, formaldehyde, acetaldehyde, acetic acid) by the Korea Testing Laboratory (KTL)
Features 04
Smart Monitoring System

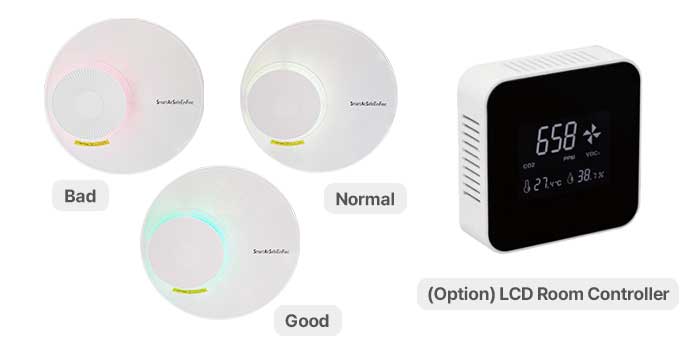

  • Air Condition LED Display
  • The air flow rate can be freely controlled by connecting the opening/closing device of the flow control unit of the duct cabin unit (room unit) with the opening/closing key.
  • LCD monitor (option): You can check the level of purified air in each room on the display.
